Automation Framework

Hybrid Framework


Hybrid Framework: It is a mixture of two or more approaches

--------
To explain this Hybrid Framework, I have taken QTP sample Application (Flight Reservations)
------------

Process Guidelines:
-------------------
i) Creating the Folder structure

ii) Creating Automation Resources
Iii) Create Organizer spread sheet
Organizer provides instructions to the Driver

iv) Generating the driver Script (QTP Test)
(We associate all resources to the Driver
Driver executes tests based on Organizer spread sheet instructions)

v) Generate the initialization Script (AOM Script file)

It launches the QTP Tool, Calls the Driver Script
Driver executes tests one by one
It closes the QTP Tool
------------------------

Test Scenarios:
Click on this Excel sheet Image in order to get Big size and Clear Image



 Hybrid Framework Functions:

 '***********************************************
'        Login Operation
'***********************************************
Function Login(Agent, Password)
    SystemUtil.Run "C:\Program Files\HP\QuickTest Professional\samples\flight\app\flight4a.exe"
    Dialog("Login").Activate
    Dialog("Login").WinEdit("Agent Name:").Set Agent
    Dialog("Login").WinEdit("Password:").Set Password
Dialog("Login").WinButton("OK").Click
    If Window("Flight Reservation").Exist(12) Then
        'Window("Flight Reservation").Close
        Login="Login Operation Sucessful"
    'Msgbox Login
Else
Systemutil.CloseDescendentProcesses
Login="Login Failed"
'Msgbox Login
End if
End Function
'***********************************************
'        Open Order
'***********************************************
Function Open_Order(ord)
    Window("Flight Reservation").Activate
    Window("Flight Reservation").WinButton("OpenOrder").Click
    Window("Flight Reservation").Dialog("Open Order").Activate
    Window("Flight Reservation").Dialog("Open Order").WinCheckBox("Order No.").Set "ON"
    Window("Flight Reservation").Dialog("Open Order").WinEdit("OrderNum").Set ord
    Window("Flight Reservation").Dialog("Open Order").WinButton("text:=OK").Click
    OrderNum=Window("Flight Reservation").WinEdit("Order No:").GetROProperty("text")
OrderNum=Cint(OrderNum)
If ord=OrderNum Then
    Open_Order=ord&" Order Opened Sucessfully"
    'Msgbox Order_Number
    Else
Open_Order=ord&" Order Not Opened"
    'Msgbox Order_Number
End If

End Function
'***********************************************
'        Update Order
'***********************************************
Function Update_Order(Tickets)
    Window("Flight Reservation").Activate
    Window("Flight Reservation").WinButton("OpenOrder").Click
    Window("Flight Reservation").Dialog("Open Order").WinCheckBox("Order No.").Set "ON"
    Window("Flight Reservation").Dialog("Open Order").WinEdit("OrderNum").Set "5"
    Window("Flight Reservation").Dialog("Open Order").WinButton("text:=OK").Click
    Window("Flight Reservation").WinEdit("Tickets:").Set Tickets
    Window("Flight Reservation").WinButton("Update Order").Click
    Wait 10
    Message=Window("Flight Reservation").ActiveX("Threed Panel Control").GetROProperty("text")
    If  Message="Update Done..." Then
Update_Order="Order Updated Sucessfully"
'Msgbox Update_Order
Else
Update_Order="Order Not Updated"
'Msgbox Update_Order
End If
End Function
'***********************************************
'        Close Application
'***********************************************
Function Close_App()
   If Window("Flight Reservation").Exist(3) Then
       Window("Flight Reservation").Close
   End If
End Function
'***********************************************
'        Login for Data Driven Testing
'***********************************************
Function Login2(Agent, Password)
    SystemUtil.Run "C:\Program Files\HP\QuickTest Professional\samples\flight\app\flight4a.exe"
    Dialog("Login").Activate
    Dialog("Login").WinEdit("Agent Name:").Set Agent
    Dialog("Login").WinEdit("Password:").Set Password
Dialog("Login").WinButton("OK").Click
    If Window("Flight Reservation").Exist(12) Then
        Window("Flight Reservation").Close
        Login2="Login Operation Sucessful"
    'Msgbox Login
Else
Systemutil.CloseDescendentProcesses
Login2="Login Failed"
'Msgbox Login
End if
End Function
'***********************************************
'        Open Order
for Data Driven Testing
'***********************************************
Function Open_Order2(ord)
    Window("Flight Reservation").Activate
    Window("Flight Reservation").WinButton("OpenOrder").Click
    Window("Flight Reservation").Dialog("Open Order").Activate
    Window("Flight Reservation").Dialog("Open Order").WinCheckBox("Order No.").Set "ON"
    Window("Flight Reservation").Dialog("Open Order").WinEdit("OrderNum").Set ord
    Window("Flight Reservation").Dialog("Open Order").WinButton("text:=OK").Click
    OrderNum=Window("Flight Reservation").WinEdit("Order No:").GetROProperty("text")
OrderNum=Cint(OrderNum)
If ord=OrderNum Then
    Open_Order2=ord&" Order Opened Sucessfully"
    'Msgbox Order_Number
    Else
Open_Order2=ord&" Order Not Opened"
    'Msgbox Order_Number
End If

End Function
'***********************************************
'        Update Order
for Data Driven Testing
'***********************************************
Function Update_Order2(Tickets)
    Window("Flight Reservation").Activate
    Window("Flight Reservation").WinButton("OpenOrder").Click
    Window("Flight Reservation").Dialog("Open Order").WinCheckBox("Order No.").Set "ON"
    Window("Flight Reservation").Dialog("Open Order").WinEdit("OrderNum").Set "5"
    Window("Flight Reservation").Dialog("Open Order").WinButton("text:=OK").Click
    Window("Flight Reservation").WinEdit("Tickets:").Set Tickets
    Window("Flight Reservation").WinButton("Update Order").Click
    Wait 10
    Message=Window("Flight Reservation").ActiveX("Threed Panel Control").GetROProperty("text")
    If  Message="Update Done..." Then
Update_Order2="Order Updated Sucessfully"
'Msgbox Update_Order
Else
Update_Order2="Order Not Updated"
'Msgbox Update_Order
End If
End Function
Organizer Spread Sheet:

 I st Sheet "Module"

Click on this Excel sheet Image in order to get Big size and Clear Image

II nd Sheet "TestCase"

Click on this Excel sheet Image in order to get Big size and Clear Image


 III rd Sheet "TestStep"

Click on this Excel sheet Image in order to get Big size and Clear Image

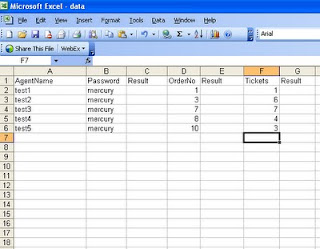

 Test Data:

Click on this Excel sheet Image in order to get Big size and Clear Image


Driver Script:

'Adding sheets to Run-time data table
DataTable.AddSheet "Module"
DataTable.AddSheet "TestCase"
DataTable.AddSheet "TestStep"
DataTable.AddSheet "Login"

'Importing data from External File
DataTable.ImportSheet "C:\Documents and Settings\gcr\Desktop\Proj_Automation\Orginizer\Organizer.xls",1,3
DataTable.ImportSheet "C:\Documents and Settings\gcr\Desktop\Proj_Automation\Orginizer\Organizer.xls",2,4
DataTable.ImportSheet "C:\Documents and Settings\gcr\Desktop\Proj_Automation\Orginizer\Organizer.xls",3,5
DataTable.ImportSheet "C:\Documents and Settings\gcr\Desktop\Proj_Automation\TestData\data.xls",1,6

'Capturing Executable Modules from Module Sheet
MRowCount=DataTable.GetSheet("Module").GetRowCount
For i=1 to MRowCount Step 1
          DataTable.SetCurrentRow(i)
          ModuleExe=DataTable(3,"Module")
          If UCase(ModuleExe)="Y" Then
                   ModuleId=DataTable(1,"Module")
                   'Msgbox "ModuleId: " & ModuleId

                   '           Capturing executable test cases under executable modules
                   TCRowCount=DataTable.GetSheet("TestCase").GetRowCount
                   For j=1 to TCRowCount Step 1
                             DataTable.SetCurrentRow(j)
                             TCCaseExe=DataTable(3,"TestCase")
                             ModuleId2=DataTable(4,"TestCase")
                             If UCase(TCCaseExe)="Y" and ModuleId=ModuleId2 Then
                                      TestCaseId=DataTable(1,"TestCase")
                                      'Msgbox TestCaseId
                                      'Capturing keywords for executable steps
                                      TSRowCount=DataTable.GetSheet("TestStep").GetRowCount
                                      For k=1 to TSRowCount Step 1
                                                DataTable.SetCurrentRow(k)
                                                TestCaseId2 = DataTable(5,"TestStep")
                                                If TestCaseId=TestCaseId2 Then
                                                          keyword=DataTable(4,"TestStep")
                                                          'msgbox keyword
                                                          Select Case keyword
                                                                   Case "ln"
                                                                                      Result=Login("abcd","mercury")
                                                                                      DataTable(7,"TestStep")=Result
                                                                   Case "oo"
                                                                                      Result=Open_Order(5)
                                                                                       DataTable(7,"TestStep")=Result
                                                                   Case "uo"
                                                                                      Result=Update_Order(5)
                                                                                      DataTable(7,"TestStep")=Result
                                                                   Case "ca"
                                                                                      Close_App()

                                                                                      Case "lnd"
                                                                                                Rows=DataTable.GetSheet("Login").GetRowCount
    For m=1 to Rows Step 1
                                                                                                          DataTable.SetCurrentRow(m)
                                                                                                          Result=Login2(DataTable(1,"Login"),DataTable(2,"Login"))
                                                                                                          DataTable(3,"Login")=Result
      Next
                                                                   Case "ood"
                                                                                                Rows=DataTable.GetSheet("Login").GetRowCount
    For n=1 to Rows Step 1
                                                                                                          DataTable.SetCurrentRow(n)
                                                                                                          Result=Open_Order2(DataTable(4,"Login"))
                                                                                                          DataTable(5,"Login")=Result
          Next

          Case "uod"
                                                                                                Rows=DataTable.GetSheet("Login").GetRowCount
          For p=1 to Rows Step 1
                                                                                                          DataTable.SetCurrentRow(p)
                                                                                                          Result=Update_Order2(DataTable(6,"Login"))
                                                                                                          DataTable(7,"Login")=Result
          Next
                                                          End Select
                                                End If

                                      Next
                             End If


                   Next

          End If

Next

DataTable.ExportSheet "C:\Documents and Settings\gcr\Desktop\Proj_Automation\TestResult\Result1.xls","TestStep"
DataTable.ExportSheet "C:\Documents and Settings\gcr\Desktop\Proj_Automation\TestResult\Result1.xls","Login"

Initialization Script:

Dim objQTP
Set objQTP=CreateObject("QuickTest.Application")
objQTP.Visible=True
objQTP.Launch

objQTP.Open "C:\Documents and Settings\gcr\Desktop\Proj_Automation\Drivers\Driver1"
objQTP.Test.Run
objQTP.Test.Close

objQTP.Quit
Set objQTP=Nothing

------------------------------------------------------------------

Hybrid Framework using Keyword Driven and Data Driven Approches
